Kingspan Lite Deck Fastener
Fasterners, Plates, Bars

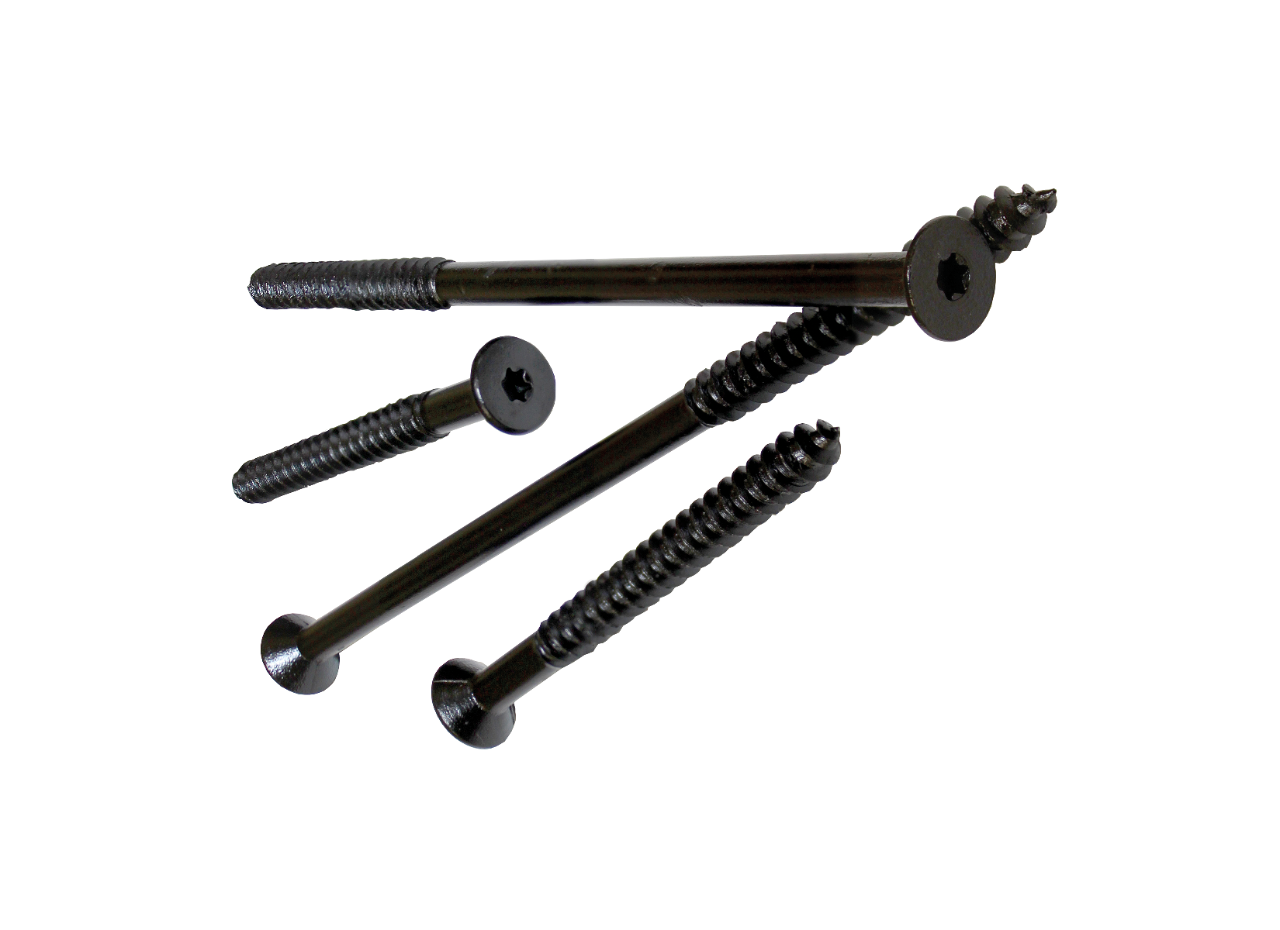

The Kingspan Lite Deck Fasteners are threaded specialty fasteners designed to secure Kingspan membranes, polyiso insulation, and approved cover boards to lightweight-structural concrete, gypsum, and cementitious wood fiber decks.
Product Highlights
Manufactured in the U.S.A. with globally sourced materials.
Designed with deep, coarse thread profile for high pullout resistance.
Requires no Predrilling: when installed into cementitious wood fiber decks.
Reliable Installation Performance: Innovative 6-Lobe (T40) drive flat head design minimizes cam-outs.
FM Approved Assemblies available.* Used in conjunction with Kingspan Lite Deck Plates for polyiso and cover board attachment, and Kingspan Lite Deck Batten Strip for membrane securement.
Corrosion resistant coating passes the requirements of FM Standard 4470 and EAD 030351-00-0402.
Available Fastener Lengths: 2 5/8-in., 3-in. to 10-in. (1-in. increments), and 12-in.
*The Lite-Deck Fastener is only FM approved for use with Kingspan Lite Deck 3" Plates for adhered and insulation securement applications. FM does not approve mechanically attached systems into Tectum or Gypsum.
